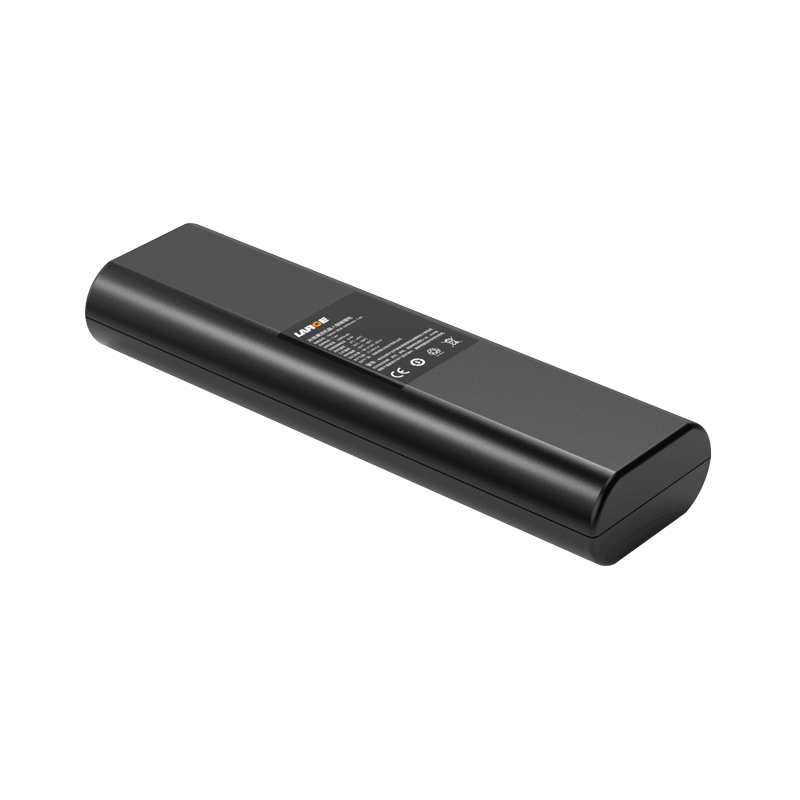

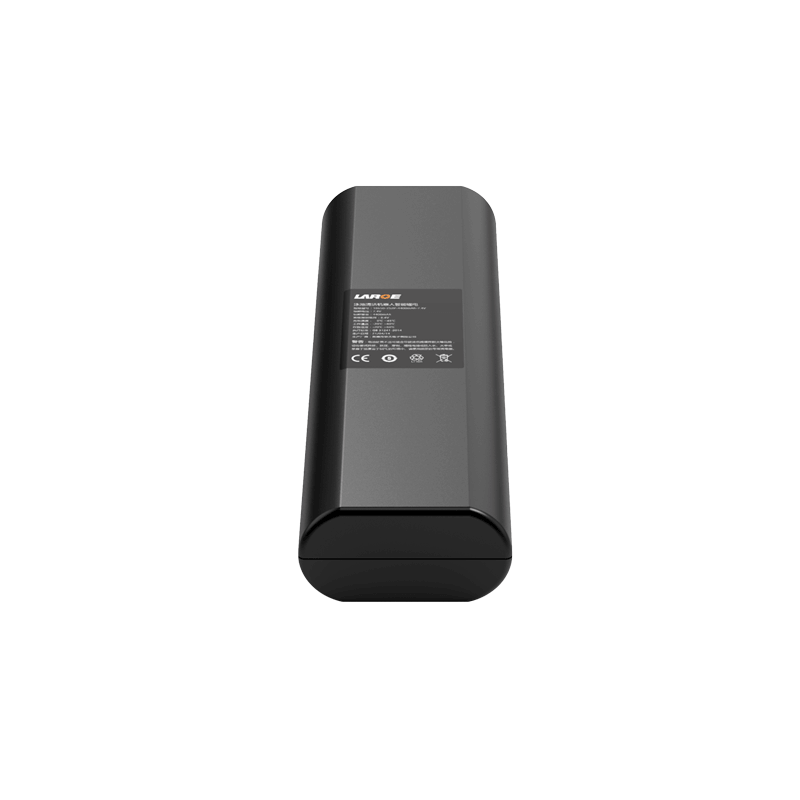

7.4V 4400mAh Swimming Pool Cleaning Robot Intelligent Lithium Battery
Li-ion batteries suitable for cleaning robots
Product Number: 01DQ0131-01
Rated voltage: 7.4V
Rated capacity: 4400mAh
Battery size: 135*43*19.5mm
Charging temperature: 0 – 45℃
Discharge temperature: -20 to 60 degrees Celsius
Application field: Robotics
Product Number: 01DQ0131-01
Cell model: 18650 – 2200mAh – 3.7V
Battery specification: 18650 – 2S2P – 4400mAh – 7.4V
Rated voltage: 7.4V
Rated capacity: 4400mAh
Charging voltage: 8.4V
Charging current: ≤ 2.2A
Discharge current: ≤ 4.4A
Discharge cut-off voltage: 6.0V
Internal resistance of the finished product: ≤ 120 mΩ
Battery weight: 210g
Product dimensions: 135*43*19.5mm
Charging temperature: 0 – 45℃
Discharge temperature: -20 to 60 degrees Celsius
Storage temperature: -20 to 35 degrees Celsius
Battery packaging: Blue PVC packaging
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection, ESD protection, etc.
Application fields: Cleaning robots, sweeping robots, mapping robots and other robot domains
Product features
Blue PVC heat shrink film packaging, simple and reliable, easy to install
Connector plug end: Uses JST plug output method, enhancing the conductivity reliability of the plug.
Data communication management: Utilize TI-SMBus software to manage chips, achieve precise data transmission via SMBus communication, and ensure accurate temperature control. This method minimizes potential safety hazards to the greatest extent.
The battery pack is safe, has excellent discharge performance and a long cycle life.
The battery pack has a long cycle life, which is in line with the value concepts of low carbon, energy conservation and environmental protection.
